Printed circuit boards (PCBs) form the foundation of electronics, providing the platform to mount and interconnect components using copper traces on an insulating substrate. PCB technology has evolved tremendously over decades, with modern requirements demanding thinner, smaller, higher density, more flexible and lower cost designs.

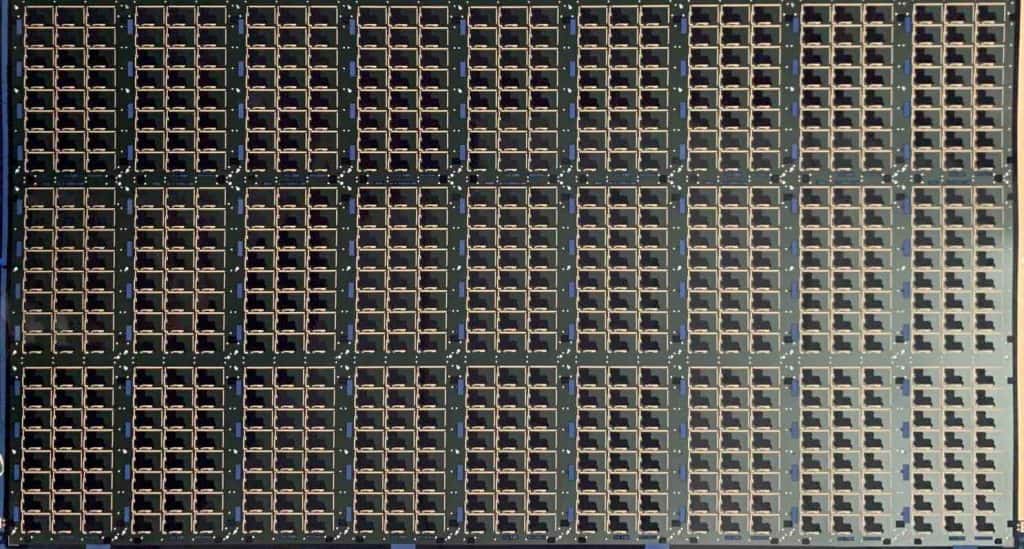

Ultra-thin PCBs specifically feature extremely slim board thicknesses below 1.6 mm (0.063 inches) down to as thin as 0.15mm (0.006 inches). This article provides a deep dive into ultra-thin PCB advancements – answering what they are, why thickness matters, manufacturing techniques, key applications, challenges and outlook for the future.
What is FR4 Material?
To understand ultra-thin PCBs, we must first grasp the basics of the FR4 glass reinforced epoxy laminate material that makes up circuit boards.
FR4 is the most common PCB substrate material, composed of woven fiberglass cloth reinforcement embedded within an epoxy resin binder. The epoxy resin system imparts mechanical rigidity while the glass fibers provide strength to the board.
Some key properties of FR4 material include:
- Good electrical insulation with high resistivity
- Flame retardancy for safety
- Moderate flexibility & bending before cracking
- Capability to withstand PCB assembly processing temperatures
- Relatively low cost
One shortcoming of standard 1.6 mm thick FR4 boards is that they lack flexibility to adapt to compact device designs and emerging needs.
This sparked motivation to create ultra-thin variants of the trusted FR4 material system with thinner dielectric substrates. Let’s analyze some of the benefits driving ultra-thin PCB adoption next.
Why are Ultra-Thin PCBs Needed?
Some of the top reasons ultra-thin PCB development is essential include:
Weight Reduction
Consumer devices like phones, laptops, tablets, IoT products and wearables demand thinner and lighter electronics to improve portability and ease of use. Shaving down PCB weight via ultra-thin boards aligns with this priority.
Even marginal PCB weight reductions multiply into substantial savings from the perspective of a major electronics OEM producing millions of units per year. This spurs tech innovation into thinning approaches.
Increased Flexibility & Conformability
Many modern gadgets feature non-flat, contoured housings needing flexible PCBs able to conform around molded enclosures or fold into small volumes. Ultra-thin boards provide enhanced flexibility to adapt within restricted 3D spaces inside products.
Tighter Packing of Components
Thinner boards allow components to be more densely packed together. This directly translates to smaller overall electronics hardware sizes, critically important in compact hand held tools, IoT devices, aerospace and defense systems.
Improved Thermal Performance
Thin boards offer lower thermal resistance to efficiently dissipate heat from hot components mounted directly on them. Less substrate thickness means heat pipes and sinks contact closer to actual chips, keeping junction temperatures cooler.
Lower Dielectric Losses
Ultra-thin laminates minimize signal losses across the board substrate dielectric medium. This allows high speed communication signals relying on tightly controlled impedance environments to travel faster and further across PCBs.
Next we’ll analyze popular processes to reliably manufacture these ultra-thin circuit boards.
Key Manufacturing Techniques for Ultra-Thin PCBs
Bringing reliable ultra-thin PCBs into high volume production has required material science innovations paired with advanced fabrication processes.
Here are 5 pivotal manufacturing technologies enabling ultra-thin PCB production at scale:
1. Prepeg Materials Innovation
At the heart of ultra-thin PCB mass production is the development of thin prepreg bonding films. Prepreg refers to the thermoset epoxy resin system reinforced with fiberglass cloth.
Cutting edge processes can reliably cure ultra-thin prepreg materials down to 25-50μm thickness with tight uniformity across large panel sizes. This forms the foundation for thin boards.
2. Sequential Lamination
During lamination, prepreg sheets are stacked up symmetrically along with inner layer circuitized cores within a mechanical press. Heat and pressure bonds adjacent layers into an integrated board.
However standard lamination pressures crack thin materials. So sequential lamination applies lighter pressures through multiple inflection points to bond thin cores without damaging them.
3. Advanced Drilling Techniques
Ultra-thin laminates require especially tight precision drilling to create interconnect vias between layers with strict positional accuracy tolerances below 5μm deviation. Quality issues become magnified at thinner dimensions.
Specialized drilling methods like lasers, plasma and UV photo-via help form high density microvias within ultra-thin boards too fragile for traditional mechanical drilling.
4. Modified Surface Finishes
Standard PCB surface finishes like HASL lead are too thick for proportionally coating ultra-thin boards which distorts dimensions. So ultra-thin PCBs leverage low profile ENIG, ENEPIG or OSP finishes to protect traces without oozing over fine features.
5. Special Handling Requirements
Thin boards under 0.4mm thick are extremely fragile, needing custom racking solutions to transport panels across fabrication lines. Vacuum assisted tooling gently handles the fragile boards during processes like drilling, routing and optical inspection.
This covers approaches enabling reliable manufacturing of ultra-thin FR4 circuit boards. Next we’ll highlight some key end use applications taking advantage of ultra-thin board properties.
What Industries Use Ultra-Thin PCBs?
Some leading applications benefitting from ultra-thin PCB technology spans industries like:
- Smartphones, tablets & wearables
- Laptops, game consoles
- Drones, IoT gadgets
Computing
- Servers, data storage drives
- Mini/micro computing
Automotive
- In-vehicle infotainment
- Drive data recorders
- Vehicle tracking GPS
Aerospace/Defense
- Avionics equipment
- Missile guidance
- Military radio hardware
Medical
- Implants, hearing aids
- Diagnostic imaging
Common themes across these market segments include needs for weight reduction, tightly constrained PCB sizes, curve shaped enclosures, enhanced high speed signals or rugged durability.
Let’s highlight two specific product examples leveraging ultra-thin boards:
Wearable Health Trackers
Health monitoring wrist bands and smart watches rely on thin, flexible PCBs to wrap around contours comfortably while packing electronics tightly. Ultra-thin builds allow more PCB layers routing signals from sensor ICs across small volumes.
Servers/Data Centers
Servers demand optimal cooling and signal integrity for processing reliability. Ultra-thin high layer count boards place chips closer together with lower thermal resistance paths to heat sinks. Dielectric losses are also minimized for high speed signals across backplanes linking server blades.
These demonstrate applicability of thin PCBs towards current technology innovations. Next we’ll highlight some handling precautions when working with thin laminates.
Practical Challenges Associated with Ultra-Thin PCBs
While delivering valuable advantages, ultra-thin PCB technology also poses some unique challenges requiring special care during fabrication, assembly and testing.
Some common challenges when dealing with thin boards include:
Fragility and Susceptibility to Damage
Laminates below 0.8mm thickness become extremely fragile and prone to cracking, flexural damage, bow and warp defects both during manufacturing processes as well as shipping or handling stress.
Reduced Thermal Mass Deforms Easily
The low thermal capacity of thin laminates makes them quickly deform under heat exposure. Temperatures above Tg (glass transition) cause temporary or permanent misshaping if not specially clamped during soldering reflow.
Prone to Twist, Skew and Registration Errors
Insufficient handling rigidity through various fabrication processes causes stacking registration issues leading to skew or misaligned interconnect vias between layers.
Produces Insufficient Peel Strength
If prepreg resin flow does not properly bond inner layer interfaces enough, interlaminar separation or fractures result destroying board integrity and reliability.
Challenging Rework and Modifications
Required drilling, routing or pad repairs post-production pose risks of fracturing ultra-thin boards which lack reserves to withstand modifications.
By understanding these limitations unique to thin boards, engineers can account for them by specifying appropriate handling fixtures, qualification testing, design rules and assembly clamping.
Now that we reviewed background, benefits, manufacturing and challenges, we’ll conclude by projecting the future potential for ultra-thin PCBs.
The Outlook for Ultra-Thin Board Development
Ultra-thin PCB technology has come a long way enabling innovative electronics across industries like consumer, medical, defense and automotive – but additional advances are still needed moving forward.
Continued Thinning
There are few signs of the drive towards thinner, lighter electronics abating given continue market demands. This pressures board shops to develop processes reliably achieving mainstream laminate production below 0.2 – 0.3mm thickness. Materials resiliency and microvia reliability become heightened concerns needing focus with ongoing PCB thinning extremes.
Hybrid Flex-Rigid Designs
Rather than purely rigid ultra-thin boards, many applications call for combination constructions which integrate even thinner flexible PCB materials into specific bendable zones. More research into robustly bonding thin flex-rigid hybrid designs promises better electronics adaptations to complex 3D shapes.
Improved High Density Integration
Thinner laminate stacking allows more densely integrated components, but sufficient heat dissipation becomes critical. Thermal vias, embedded channels and exotic fillers manage heat buildup while enhancing packing densities through vertical interconnect approaches like buried resistor/capacitors and staggered through mold vias.
Cost Pressures
Ultra-thin fabrication processes remain specialized relative to standard PCB production which risks slowing mainstream adoption. However as material volumes scale up and equipment makers tailor solutions towards thin boards, size and cost pressures should ease in the long term.
In summary, ultra-thin PCB technology helps enable transformative lighter and smaller next-gen electronics. Ongoing materials science and manufacturing process breakthroughs promise to spread ultra-thin board capabilities towards exciting new applications in the future.
Frequently Asked Questions
Can conventional FR4 resin be thinned arbitrarily without quality issues?
No, common FR4 material properties like glass transition temperatures, coefficient of thermal expansion, modulus of elasticity, tear strength and moisture absorption behave quite differently with excessive thinning below 0.3mm. Without re-formulating resin chemistry or additive adjustments, excessive thinning hurts PCB reliability.
What are typical thin board defect rates relative to standard 1.6mm PCBs?
Defect rates typically rise considerably for PCBs under 0.8mm thickness, often over 10X higher vs standard boards. Process defects occurring during lamination, drilling,routing, plating and handling damage are especially prevalent requiring extra inspection vigilance.
What design strategies help compensate ultra-thin PCB fragility?
To safeguard thin PCB integrity, designers avoid cutouts or notches reducing strength, specify wider conductor/spacing rules as process tolerance buffers, use adhesive stiffening bars/frames, eliminate flexible zones from boards, and analyze vibration/shock loads for worst case resonances.
Can multiple ultra-thin cores be interleaved to form thicker boards?
Yes, multiple ultra-thin cores around 0.2mm thickness can be stacked together with adhesive sheets in between to fabricate multi-layer boards exceeding 1.6mm total thickness. This helps circumvent thinner core handling issues, while reducing critical signal layer dielectric constant relative to thicker cores.
What are typical price premiums charged for ultra-thin PCB prototyping?
Because of specialized materials and customized racking fixtures needed for gentle handling, expect prototyping costs between $1500-2500 for small batches of 5-10 boards on average – likely over 10X the expense of standard prototypes. Cost reduces substantially for higher volume production over 500-1000 units as dedicated tooling gets reused.
Conclusion
To conclude, ultra-thin PCB technology enables lighter, smaller and more integrated electronics desired across industries – but poses unique manufacturability challenges still being resolved to reach mainstream adoption. Striking the optimal tradeoffs between thinness, cost and reliability remains an evolving art mastered gradually through accumulated PCB materials & process knowledge paired with design ingenuity.
